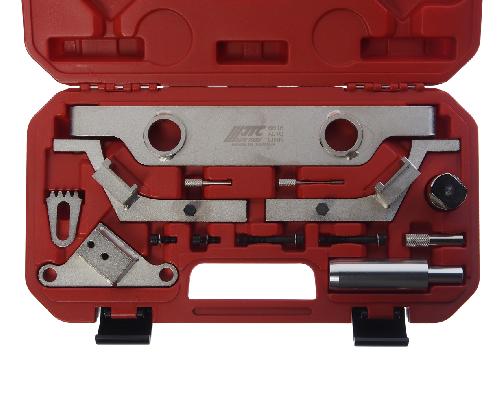

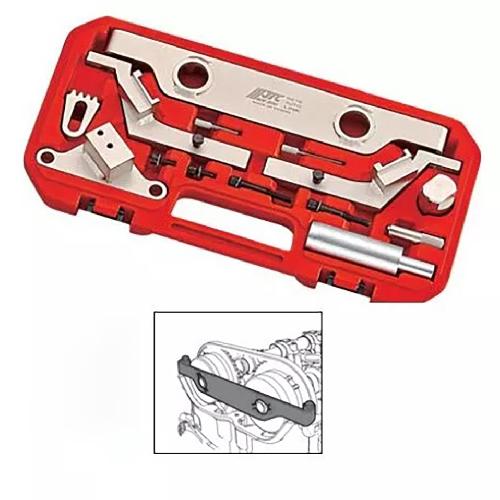

Timing Tool Set-For Gm, Opel 2.0, 2.4 JTC-6616

1. Key Features:

• This tool set is specially designed to set and hold the camshafts, crankshaft, and timing chain tensioner during maintenance and repair.

• Suitable for high-performance 2.0L and 2.4L twin cam turbocharged petrol engines, commonly found in GM, Chevrolet, and Saab vehicles.

• Ensures precise alignment of engine timing components during timing chain/belt replacement or service.

• Includes multiple OEM-compatible tools and references: EN-48585, EN-43653, EN-955, EN-45027, EN-49212, EN-48953…

2. Practical Applications:

• Applicable to various models from Vauxhall, Opel, Saab, Chevrolet, and Buick, manufactured between 2008 and 2015.

• Compatible engine codes: LHU/A20NFT, LTG/A20NHT, LDK/A20NHT, LE5/LE9, A24XE, A24XF.

• Ideal for professional garages servicing European vehicles or GM platforms where precise timing work is critical.

3. How to Use:

• Rotate the engine to bring piston no.1 to Top Dead Center (TDC).

• Use the locking pins or plates included to secure the crankshaft and camshafts in position.

• Install the chain tensioner holding tool as per the instructions provided.

• Carry out the repair or timing chain/belt replacement.

• Remove the tools and double-check timing alignment before final assembly.

4. Maintenance Instructions:

• Wipe clean with a dry cloth after each use to prevent dirt and grease buildup.

• Apply light anti-rust spray if needed to protect metal components from oxidation.

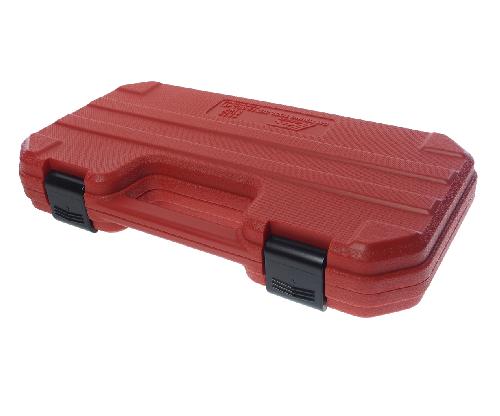

• Store in the original carrying case in a dry, dust-free environment, away from sunlight and moisture.

• Do not use the tools as levers, pry bars, or for any unintended purposes to avoid damage or deformation.
