1. Key Features

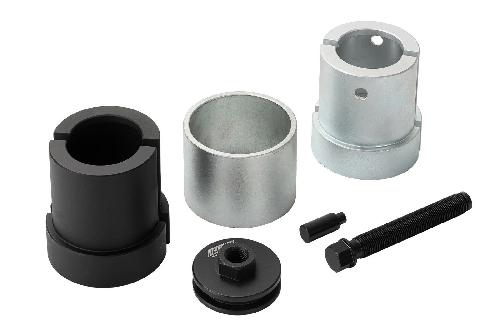

The JTC-6880 Transmission Gear Remover for VAG is specially designed to remove the 6th-speed gear wheel together with the synchro-hub from manual transmissions.
The tool allows technicians to remove the gear and synchro-hub accurately while minimizing the risk of damaging surrounding transmission components.
JTC-6880 is suitable for 02S 6-speed manual gearboxes and 0A4 5-speed manual gearboxes, making it ideal for professional transmission repair, overhaul and maintenance.
VM number: T10309A.
2. Practical Applications
Removing the 6th-speed gear wheel.
Removing the 6th-speed gear together with the synchro-hub.
Supporting VAG manual transmission repair and overhaul.
Applicable to 02S 6-speed manual gearboxes.
Applicable to 0A4 5-speed manual gearboxes.
Suitable for professional transmission repair workshops and automotive service centers.
3. Instructions for Use
Remove the relevant transmission components according to the manufacturer's service procedure.
Identify the 6th-speed gear and synchro-hub to be removed.

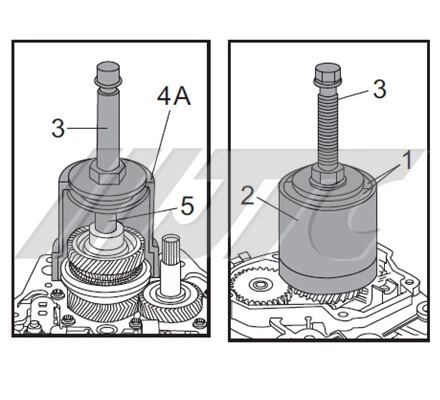

Position the JTC-6880 correctly on the gear and synchro-hub assembly.
Make sure the tool is properly aligned and securely positioned.
Apply suitable pulling force to remove the gear and synchro-hub from the shaft.
Inspect the components after removal and repair or replace them as required.
4. Maintenance
Clean the tool after every use.
Inspect all contact and load-bearing areas before operation.
Do not use the tool if it is deformed or damaged.
Apply anti-rust oil periodically.

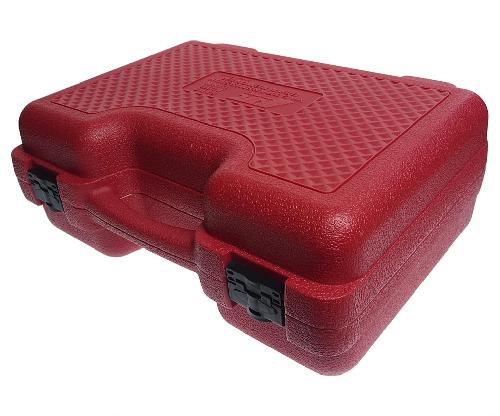

Store in a tool case or a clean, dry environment.
