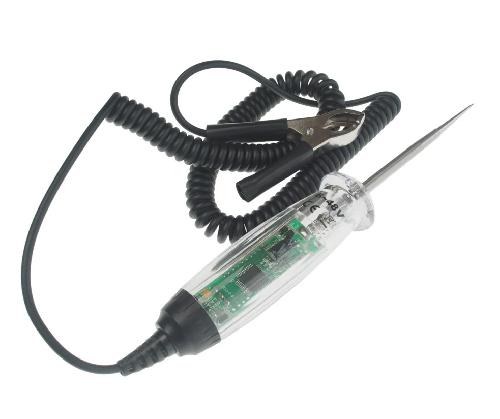

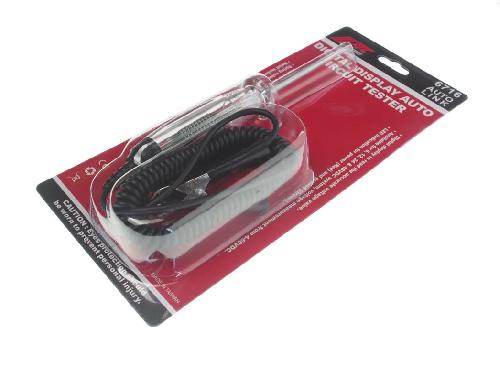

JTC-6716 Digital Display Auto Circuit Tester
- Digital display to read the accurate voltage value.
- Available for 6, 12, 24 & 48VDC system, voltage measurement from 4-60VDC.

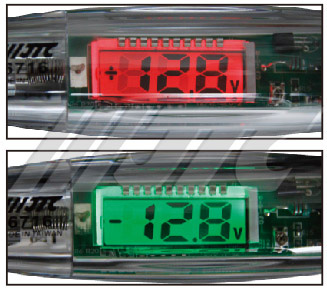

- LED indication for power (Red) and ground (Green).
- Stainless steel testing probe.
- Spring cable which is able to extend to 3 meter.
- Small testing current < 10mA.
| No |
File name |
File type |
Download |
1. Outstanding Features
Digital display to read the accurate voltage value, allowing quick and clear testing. Available for 6, 12, 24 & 48VDC system, voltage measurement from 4-60VDC. LED indication for power (Red) and ground (Green), giving instant status recognition. Stainless steel testing probe, durable and easy to contact measurement points. Spring cable which is able to extend to 3 meter, convenient when working at distance. Small testing current < 10mA, safe for circuits and sensitive electronic devices.
2. Practical Applications
Testing voltage on 6V, 12V, 24V and 48VDC systems on cars and trucks. Accurately measuring voltage at batteries, alternators and charging systems. Testing wire polarity via red and green LED indicators. Supporting circuit fault diagnosis on passenger cars, trucks and hybrid vehicles. Checking low voltage signals in electronic control systems. Used in garages, service workshops and technician training. Suitable for quick checks when installing auxiliary electrical equipment.
3. How to Use
Step 1: Extend the spring cable to the required length, maximum 3 meters.
Step 2: Clamp the ground end to earth point or vehicle frame.
Step 3: Touch the stainless steel testing probe to the point to be measured.
Step 4: Observe the digital display to read the voltage value.
Step 5: Check the red LED for power and green LED for ground.
Step 6: Move the probe to other points for continuous testing.
Step 7: Disconnect and retract the spring cable after completion.
4. Device Maintenance
Clean device body and probe with soft damp cloth after each use. Do not immerse device in water or strong solvents. Check stainless steel probe periodically for bending or breakage. Check spring cable to avoid tangling or breakage. Replace battery when display is weak or does not turn on. Store in dry place, avoid direct sunlight and high temperature. Do not use device outside 4-60VDC measurement range. Store in carrying case when not in use.
