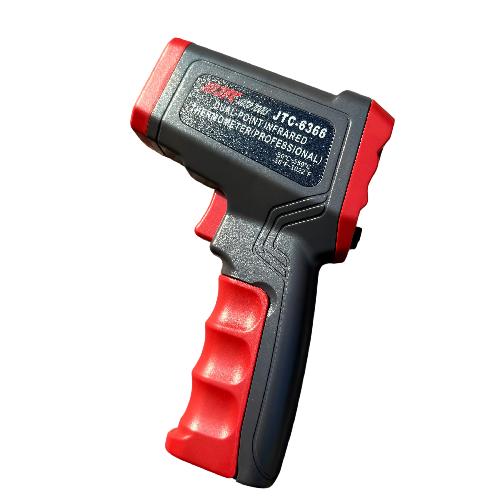

JTC-6366 Dual-Point Infrared Thermometer(Professional)

1. Outstanding Features

Apply to automotive repair and maintenance, or A/C testing. The dual infrared points allow diagnosing the accurate measurement quickly. Multiple display options for setting according to user's needs. Measuring range -50℃~550℃, suitable for many professional applications. Accuracy ±2% @ ≧100℃; ±2℃ @ ≦100℃. Distance spot ratio 12 : 1. Operating temperature 0~50℃.



2. Practical Applications

Professional automotive repair and maintenance. Testing air conditioning (A/C) systems and condensers. Measuring temperature of engines, cooling systems and brakes. Dual measurement points help compare temperature quickly. Supporting automotive technicians and automotive repair mechanics. Used in garages, service workshops and automotive maintenance stations. Suitable for automotive technical training. Convenient for non-contact thermal fault diagnosis.



3. How to Use

Step 1: Check the battery and turn on the dual-point infrared thermometer.

Step 2: Select measurement unit and display options as needed.

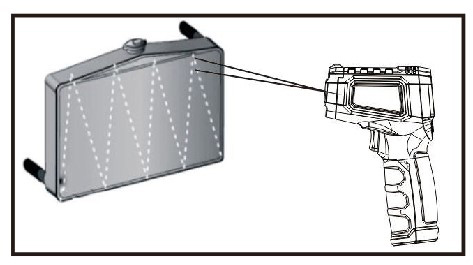

Step 3: Point the two measurement points toward the object to be measured.

Step 4: Keep a suitable distance according to the 12:1 ratio.

Step 5: Press the measure button and hold for a few seconds.

Step 6: Read the dual-point temperature results on the display.

Step 7: Turn off the device and store in the case after completing the work.



4. Device Maintenance

Clean body and probe with soft damp cloth after each use. Do not immerse device in water or strong solvents. Check infrared probe periodically for dust or scratches. Replace battery when display is weak or does not turn on. Store in dry place, avoid direct sunlight and high temperature. Do not use device outside -50℃~550℃ measurement range. Store in carrying case when not in use.
