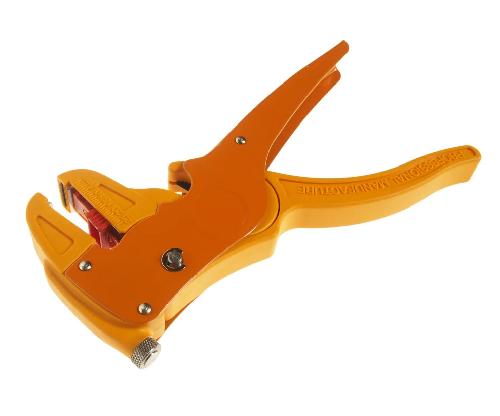

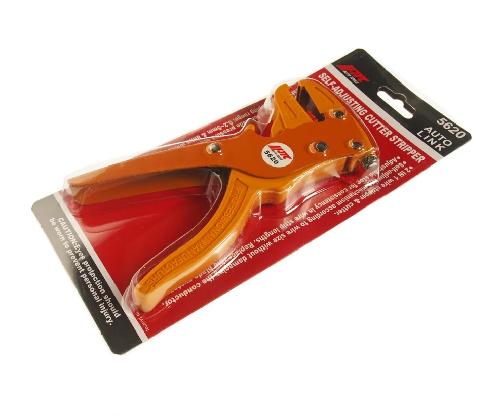

JTC-5620 Self-Adjusting Wire Cutter Stripper

1. Outstanding Features

2 IN 1 wire stripper & cutter, saving time and tools during work. Self-adjusting mechanism according to wire size without damaging the conductor. Adjustable stop for consistency in wire strip lengths. Replaceable blade system, extending service life. Simple adjustment dial for blade pressure according to the thickness of insulation. Applicable wire stripping range: 0.2~5mm & 8mm width flat cable.



2. Practical Applications

Stripping electrical wire insulation in automotive electrical installation and repair. Cutting electrical wires with convenient 2 in 1 mechanism. Handling copper wires sized from 0.2~5mm and 8mm flat cable. Used in garages, service workshops and civil electrical projects. Supporting automotive electricians and professional electrical technicians. Suitable for electrical and automotive technical training. Convenient when installing auxiliary electrical systems on vehicles.



3. How to Use

Step 1: Adjust the dial to set blade pressure according to insulation thickness.

Step 2: Adjust the stop to ensure the required wire strip length.

Step 3: Place the electrical wire into the stripping slot of the pliers.

Step 4: Squeeze the handle firmly so the self-adjusting mechanism operates.

Step 5: Pull the wire out to strip the insulation without damaging the wire core.

Step 6: Use the cutting function when cutting electrical wires is needed.

Step 7: Clean the pliers and store in the case after completing the work.



4. Device Maintenance

Clean pliers with soft damp cloth after each use. Do not immerse pliers in water or strong solvents. Apply oil to the joint periodically for smooth operation. Check cutting blade periodically and replace when worn. Check adjustment dial to ensure accurate blade pressure. Store in dry place, avoid direct sunlight and high temperature. Do not use pliers to cut hard wire or overly thick metal materials. Store in carrying case when not in use.
