JTC-5618A Wire Stripper (Japanese Type)

1. Outstanding Features

Special designed strip length setting function for quickly operate. Twin color handle design for light weight and soft grip. Total Length 190mm, compact and easy to operate. Applicable: AWG24, 16, 14, 12 / 0.5, 1.2, 1.6, 2.0 mm². Green handle, easy to recognize and hold firmly.



2. Practical Applications

Stripping electrical wire insulation in automotive electrical installation and repair. Handling wires in many sizes from AWG24 to AWG12. Used in garages, service workshops and civil electrical projects. Supporting automotive electricians and professional electrical technicians. Suitable for electrical and automotive technical training. Convenient when installing auxiliary electrical systems on vehicles. Japanese type design for precise and quick operation.



3. How to Use

Step 1: Select the stripping slot suitable for the wire size to be handled.

Step 2: Adjust the strip length setting function according to requirements.

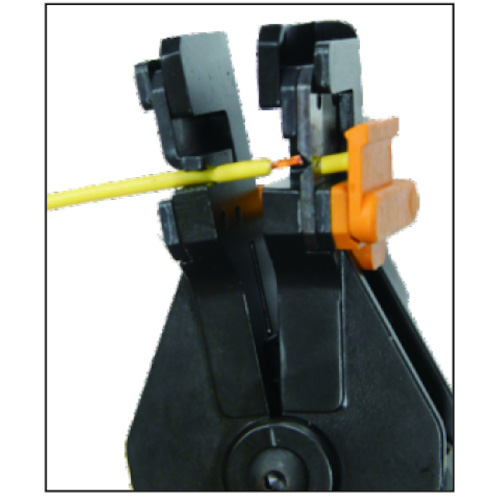

Step 3: Place the electrical wire into the corresponding stripping slot on the pliers.

Step 4: Squeeze the handle firmly to quickly strip the insulation.

Step 5: Pull the wire out to complete stripping without damaging the wire core.

Step 6: Check the inside wire core is not scratched or damaged.

Step 7: Clean the pliers and store in the case after completing the work.



4. Device Maintenance

Clean pliers with soft damp cloth after each use. Do not immerse pliers in water or strong solvents. Apply oil to the joint periodically for smooth operation. Check stripping blade periodically for wear or chipping. Check twin color handle for cracks or peeling. Store in dry place, avoid direct sunlight and high temperature. Do not use pliers to cut hard wire or metal materials. Store in carrying case when not in use.
