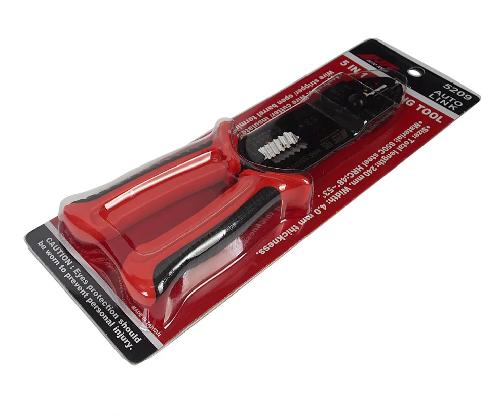

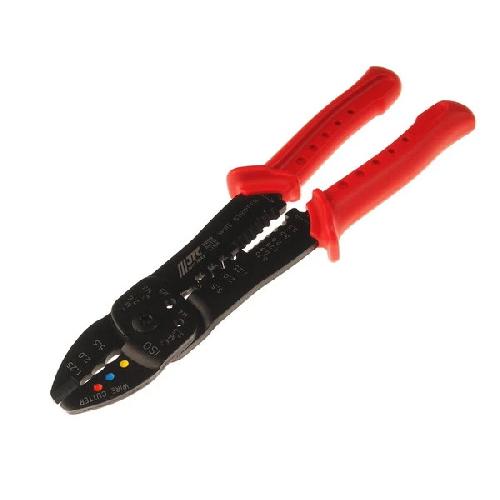

JTC-5209 5 IN 1 Crimping Tool

1. Outstanding Features

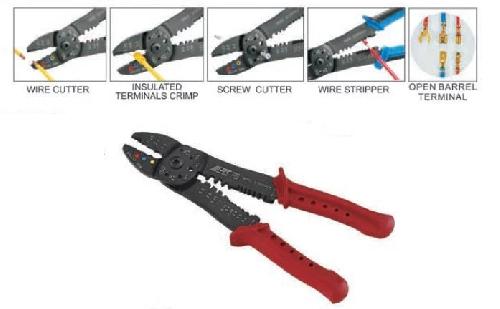

Multi-function applicable: wire cutter, insulated terminals crimp, screw cutter, wire stripper and open barrel terminal. Size total length 240mm, width and 4.0 mm thickness. Material S50C steel with HRC 48°~53° hardness. 5 in 1 design convenient, saving space and cost. Sturdy and durable structure for frequent work. Comfortable handle, reducing hand fatigue during long work.



2. Practical Applications

Cutting electrical wires in automotive electrical installation and repair. Crimping insulated terminals for vehicle circuits. Cutting screws when handling small screws is needed. Stripping electrical wire insulation quickly and accurately. Crimping open barrel terminals for automotive electrical systems. Used in garages, service workshops and civil electrical projects. Supporting automotive electricians and professional electrical technicians. Suitable for electrical and automotive technical training.



3. How to Use

Step 1: Select the function suitable for the work to be performed.

Step 2: Place the electrical wire into the corresponding stripping or cutting slot.

Step 3: Squeeze the handle firmly to strip insulation or cut wire as needed.

Step 4: Place the terminal into the crimping slot and insert the stripped wire into the terminal.

Step 5: Squeeze the handle firmly to crimp the terminal securely.

Step 6: Use the screw cutter function when handling small screws is needed.

Step 7: Clean the pliers and store in the case after completing the work.



4. Device Maintenance

Clean pliers with soft damp cloth after each use. Do not immerse pliers in water or strong solvents. Apply oil to the joint periodically for smooth operation. Check cutting blade periodically for wear or chipping. Check crimping slots and stripping slots to ensure accuracy. Store in dry place, avoid direct sunlight and high temperature. Do not use pliers to cut overly thick metal materials. Store in carrying case when not in use.
