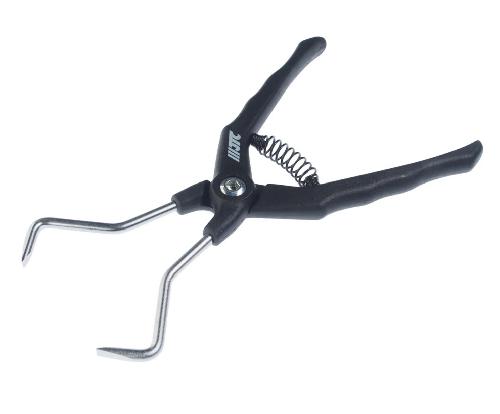

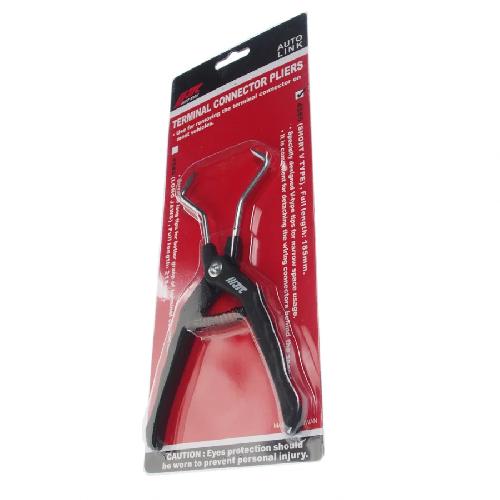

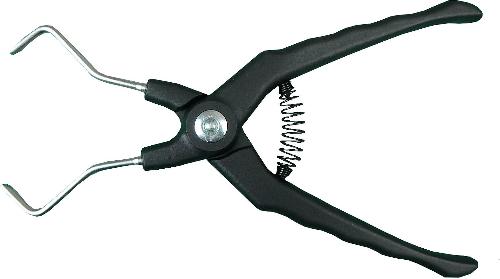

JTC-4585 Terminal Connector Pliers Short V Type

1. Outstanding Features

Use for removing the terminal connector on most vehicles. Specially designed V-type tips for narrow space usage. It is convenient for detaching the wiring connectors behind the speedometer. Full length 185mm, compact and easy to operate. Sturdy and durable structure for frequent work. Comfortable handle, reducing hand fatigue during long work.



2. Practical Applications

Removing terminal connectors on most vehicles. Used in narrow spaces of engine compartments and dashboards. Detaching wiring connectors behind the speedometer. Supporting automotive electricians and automotive repair mechanics. Used in garages, service workshops and automotive maintenance stations. Suitable for electrical and automotive technical training. Convenient for removing connectors without damaging them.



3. How to Use

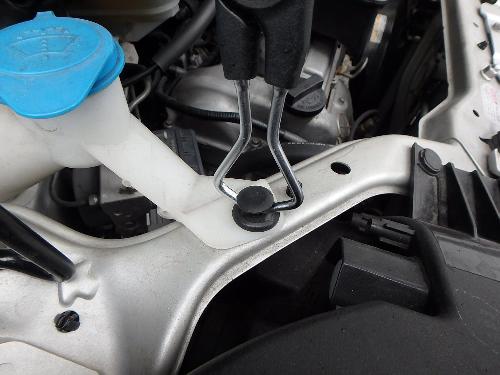

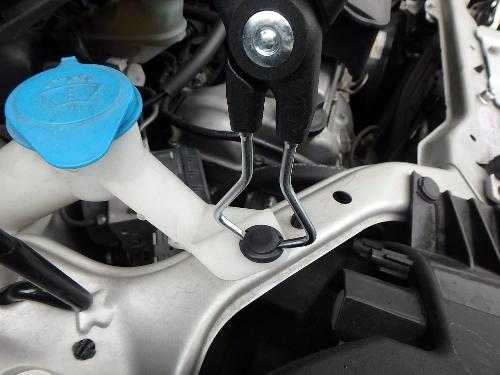

Step 1: Identify the terminal connector position to be removed.

Step 2: Insert the V-type pliers head into the connector position.

Step 3: Place the pliers head at the correct angle of the terminal connector.

Step 4: Squeeze the handle firmly to release the connector retaining clip.

Step 5: Pull the electrical wire gently to remove the connector from position.

Step 6: Check the connector and electrical wire are not damaged.

Step 7: Clean the pliers and store in the case after completing the work.



4. Device Maintenance

Clean pliers with soft damp cloth after each use. Do not immerse pliers in water or strong solvents. Apply oil to the joint periodically for smooth operation. Check V-type pliers head periodically for wear or bending. Check handle for cracks or peeling. Store in dry place, avoid direct sunlight and high temperature. Do not use pliers to grip overly hard metal materials. Store in carrying case when not in use.
