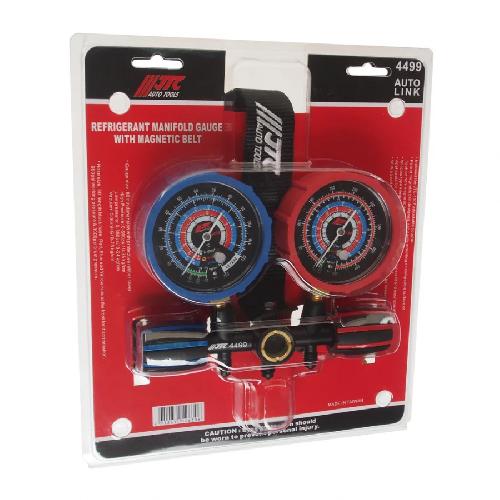

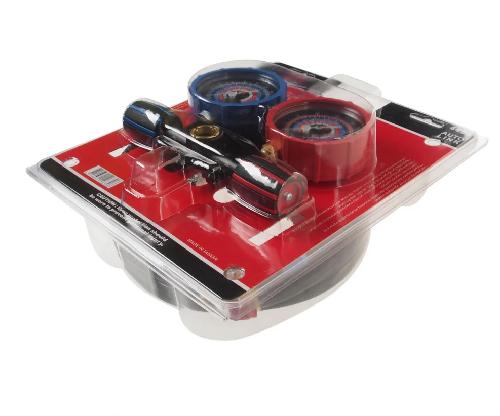

JTC-4499 Refrigerant Manifold Gauge With Magnetic Belt
Patent magnetic belt designed, can easily mounting on compatible surface or hook on non-magnetic surface.
Window type integrated aluminum frame, provide complete fit and easy operation.
Applicable for refrigerant R12, R22, R134A, and R1234yf.
Gauge size: 80mm dimension with protective rubber cover
High Pressure: 0-500psi/ 0-35 kg/cm²
Low pressure: 0-350psi/ 0-24 kg/cm²
Vacuum: 0~-30inHg/ 0~-76 cm/Hg.

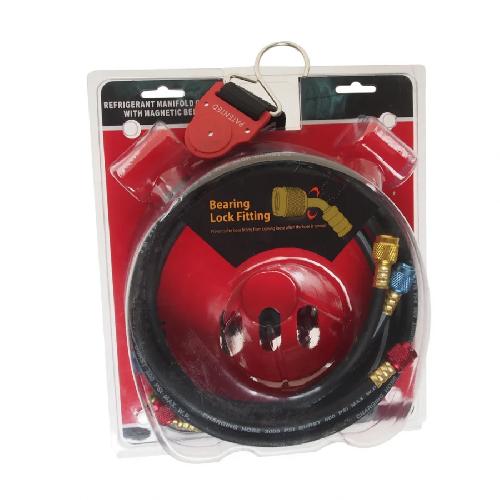

Hose size: 60" length black hose, Red, Blue and Yellow nuts at the front for discrimination. 600psi working pressure & 3000psi brust pressure.
With a bearing at the bottom of the coupler, the hose will not be released while shaking.
Optional couplers for different refrigerent.
| No |
File name |
File type |
Download |
1. Outstanding Features
Patent magnetic belt designed, can easily mounting on compatible surface or hook on non-magnetic surface. Window type integrated aluminum frame, provide complete fit and easy operation. Applicable for refrigerant R12, R22, R134A, and R1234yf. Gauge size 80mm dimension with protective rubber cover. High Pressure 0-500psi/0-35 kg/cm², Low pressure 0-350psi/0-24 kg/cm², Vacuum 0~-30inHg/0~-76 cm/Hg. Hose size 60" length black hose, Red, Blue and Yellow nuts at the front for discrimination. 600psi working pressure & 3000psi brust pressure. With a bearing at the bottom of the coupler, the hose will not be released while shaking. Optional couplers for different refrigerent.
2. Practical Applications
Measuring high and low pressure of automotive air conditioning systems. Used for R12, R22, R134A and R1234yf refrigerants. Charging gas and testing vacuum of air conditioning systems. Supporting automotive air conditioning technicians and automotive repair mechanics. Used in garages, service workshops and automotive maintenance stations. Suitable for automotive technical training. Convenient for periodic maintenance of air conditioning systems. Magnetic belt helps mount on metal surfaces easily.
3. How to Use
Step 1: Check the gauge and connection hoses are complete.
Step 2: Attach the magnetic belt onto a metal surface or hook.
Step 3: Connect the red hose to the high pressure port.
Step 4: Connect the blue hose to the low pressure port.
Step 5: Connect the yellow hose to the gas cylinder or vacuum pump.
Step 6: Open the valves and read pressure values on the gauge.
Step 7: Clean the gauge and store in the case after completing the work.
4. Device Maintenance
Clean gauge with soft damp cloth after each use. Do not immerse gauge in water or strong solvents. Check hoses and couplers periodically for leaks. Check gauge glass for cracks or cloudiness. Check valves and coupler bearing periodically. Store in dry place, avoid direct sunlight and high temperature. Do not use gauge outside allowed pressure range. Store in carrying case when not in use.
