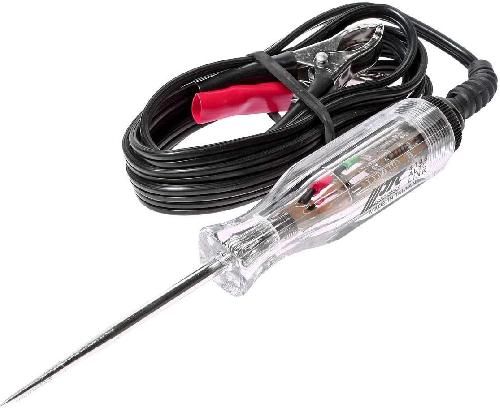

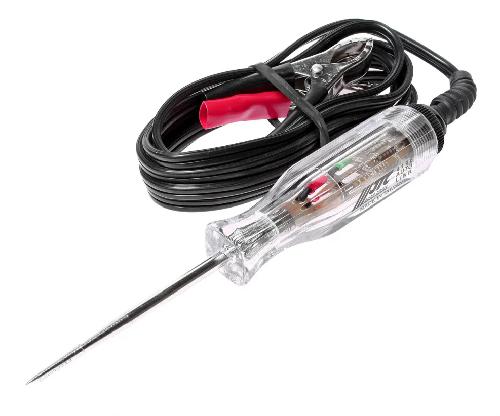

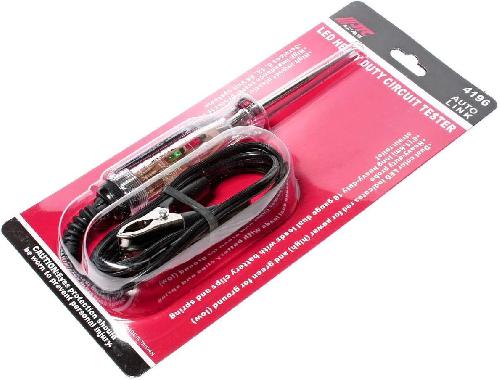

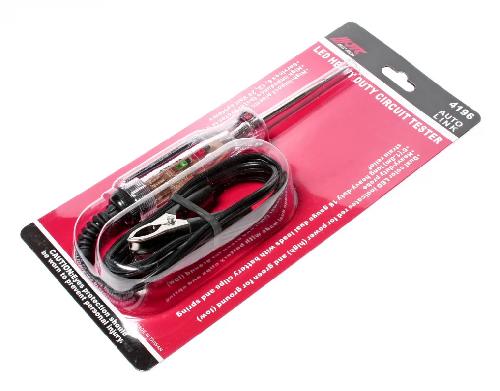

JTC-4196 Led Heavy Duty Electric Circuit Tester
Dual color LED indicates red for power (high) and green for ground (low).
Heavy-duty probe.

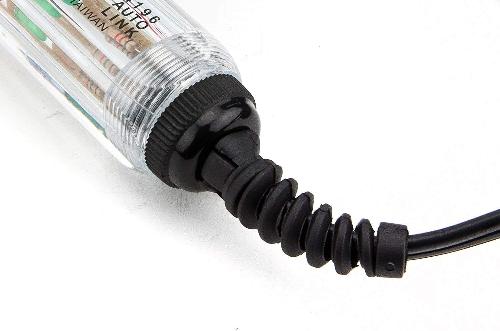

6'(1.8m) long heavy-duty 18 gauge dual leads with battery clips and spring strain relief.
High-impact plastic body.
High impedance tester protects computer circuitry.
Services 6, 12, 24 Volt systems.
JTC-4196 LED Heavy Duty Electric Circuit Tester
1. Key Features
JTC-4196 is a heavy-duty electric circuit tester designed for 6V, 12V and 24V systems.

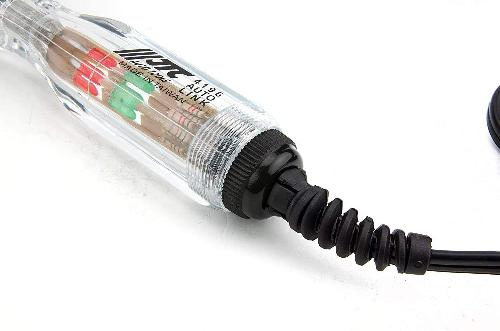

Dual-color LED indicates circuit status: red for power (High) and green for ground (Low).
Heavy-duty probe designed for frequent electrical circuit testing applications.
6 ft (1.8 m) heavy-duty 18-gauge dual leads with battery clips and spring strain relief.
High-impact plastic body provides durability during workshop use.
High-impedance tester helps protect computer circuitry and sensitive electronic systems.
2. Practical Applications
Quickly check electrical circuits on cars, trucks and other vehicles using 6V, 12V or 24V systems.
Check power and ground conditions through the dual-color LED indicator.
Suitable for testing electronic systems, control circuits and other vehicle electrical circuits.
Suitable for automotive garages, electrical and electronic repair workshops and service centers.
3. How to Use
Inspect the tester, probe, leads and battery clips before use.
Connect the battery clips to the vehicle power source.
Touch the heavy-duty probe to the circuit or test point.
Observe the LED indicator: red indicates power (High), while green indicates ground (Low).
Disconnect the battery clips after testing and clean the tester before storage.
4. Equipment Maintenance
Clean the probe and tester body after each use.
Inspect the 1.8 m dual leads, battery clips and spring strain relief for damage.
Check the LED indicator before use to ensure proper circuit-status indication.
Store the tester in a dry place and protect it from impact and excessive heat.
Do not use outside 6V, 12V and 24V electrical systems.
