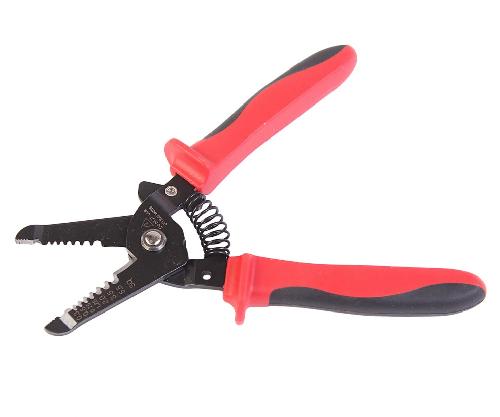

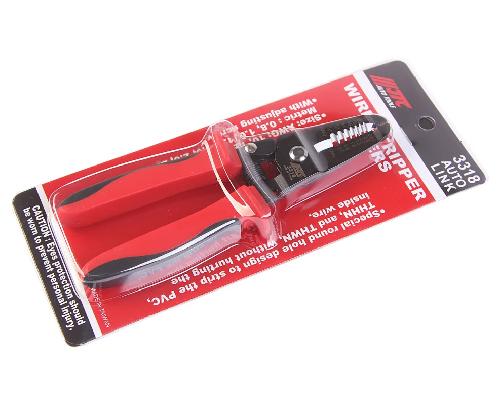

JTC-3318 Wire Stripper Pliers

1. Outstanding Features

Special round hole design to strip the PVC, THHN, and THWN, without hurting the inside wire. Twin-color handle made from PP+TPR to prevent corroded from oil & chemical. Size AWG: 10, 12, 14, 16, 18, 20, 22. Metric: 0.65, 0.8, 1.0, 1.3, 1.6, 2.0, 2.6mm. With adjusting screw to customize suitable stripping force. Length 6" (160 mm), compact and easy to carry.



2. Practical Applications

Stripping electrical wire insulation in automotive electrical installation and repair. Handling PVC, THHN and THWN wires without damaging the wire core. Used in garages, service workshops and civil electrical projects. Supporting automotive electricians and professional electrical technicians. Suitable for stripping wires in many sizes from AWG 10 to 22. Used in electrical and automotive technical training. Convenient when installing auxiliary electrical systems on vehicles.



3. How to Use

Step 1: Select the round hole with suitable size for the wire to be stripped.

Step 2: Adjust the adjusting screw to set suitable stripping force.

Step 3: Place the electrical wire into the corresponding round hole on the pliers.

Step 4: Squeeze the handle firmly and pull gently to strip the insulation.

Step 5: Rotate the wire if needed to strip evenly around the wire core.

Step 6: Check the inside wire core is not scratched or damaged.

Step 7: Clean the pliers and store in the case after completing the work.



4. Device Maintenance

Clean pliers with soft damp cloth after each use. Do not immerse pliers in water or strong solvents. Apply oil to the joint periodically for smooth operation. Check round holes and adjusting screw periodically for wear. Check PP+TPR handle for cracks or peeling. Store in dry place, avoid direct sunlight and high temperature. Do not use pliers to cut hard wire or metal materials. Store in carrying case when not in use.
