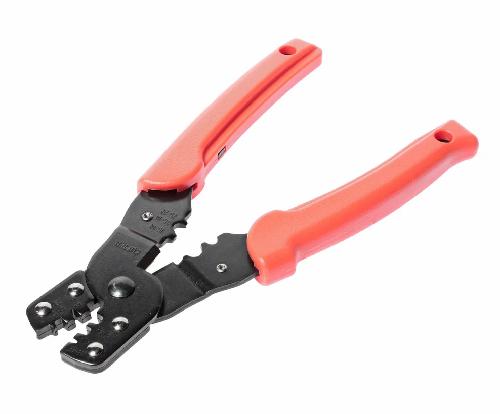

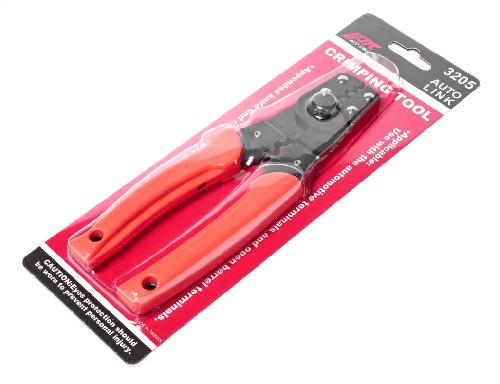

JTC-3205 Criping Tool

1. Outstanding Features

Applicable use with the automotive terminals and open barrel terminals. Specially designed for crimping automotive electrical wires. Sturdy and durable structure for frequent work. Comfortable handle, reducing hand fatigue during long work. Suitable for many common terminal types on vehicles.



2. Practical Applications

Crimping automotive terminals in automotive electrical systems. Crimping open barrel terminals for vehicle circuits. Used in garages, service workshops and civil electrical projects. Supporting automotive electricians and professional electrical technicians. Suitable for electrical and automotive technical training. Convenient when installing auxiliary electrical systems on vehicles. Used for repair and installation of electrical wiring.



3. How to Use

Step 1: Select the terminal suitable for the wire size to be crimped.

Step 2: Place the terminal into the corresponding crimping slot on the pliers.

Step 3: Insert the stripped electrical wire into the terminal.

Step 4: Squeeze the handle firmly to crimp the terminal.

Step 5: Open the pliers and check the crimp is firm.

Step 6: Pull the wire gently to check the grip of the crimp.

Step 7: Clean the pliers and store in the case after completing the work.



4. Device Maintenance

Clean pliers with soft damp cloth after each use. Do not immerse pliers in water or strong solvents. Apply oil to the joint periodically for smooth operation. Check crimping slots periodically for wear or chipping. Check handle for cracks or peeling. Store in dry place, avoid direct sunlight and high temperature. Do not use pliers to cut hard wire or metal materials. Store in carrying case when not in use.
