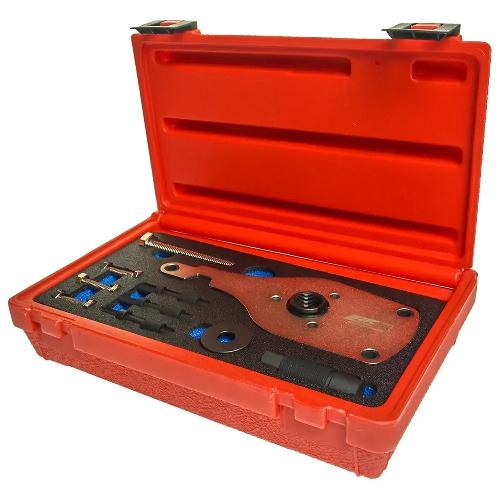

Injection Pump Remover/Installer-For Ford 2.0 JTC-6844

1. Key Features

• Specially designed for the removal and installation of high-pressure fuel pumps on modern Ford engines.

• Easy to use and highly accurate, suitable for multiple 2.0L EcoBlue TDCi engine types.

• Made from high-quality precision-machined steel for durability and stability during operation.

• Saves time and effort in maintenance or replacement tasks.

• Compatible with AWD, FWD, and RWD drive systems.

2. Practical Applications

• Used for removing and installing high-pressure fuel pumps on Ford Transit, Transit Custom, and Tourneo Custom models from 2016 onwards.

• Compatible with engine codes: YLFS, YMFS, YNFS, YLF6, YMF6, YNF6, YLR6, YMR6, YNRS.

• Widely used in professional repair workshops and official Ford service centers.

3. How to Use

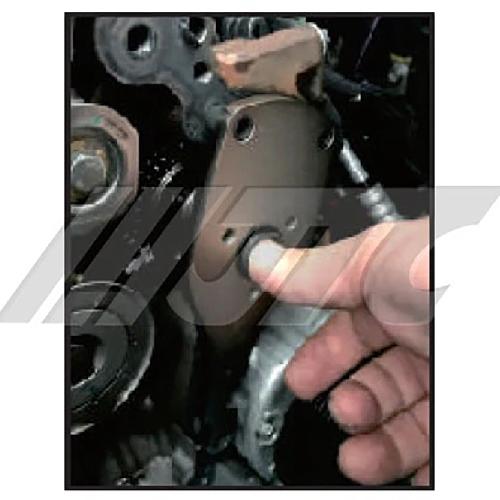

• Locate the high-pressure fuel pump on the engine.

• Use the JTC-6844 tool to securely hold and remove/install the pump without misaligning the camshaft or causing damage.

• Follow the technical documentation or the included schematic for correct procedures.

• After installation, check all fittings and tighten to the specified torque.

4. Tool Maintenance

• After use, wipe the tool clean with a dry cloth to remove oil or residue.

• Store in a dry, clean environment to prevent rust or corrosion.

• Periodically inspect the mechanical parts for wear and replace if necessary.

• Do not use the tool for applications outside the manufacturer’s recommendations to ensure long-term performance.
