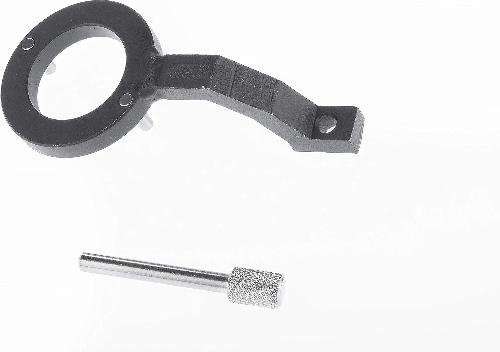

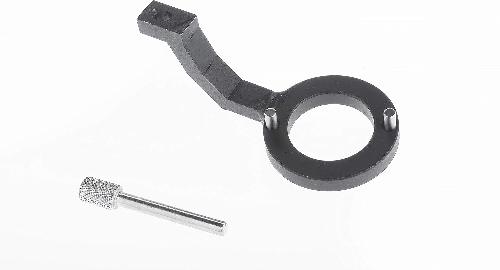

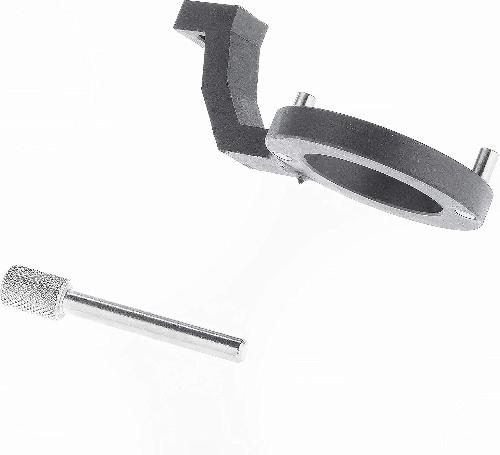

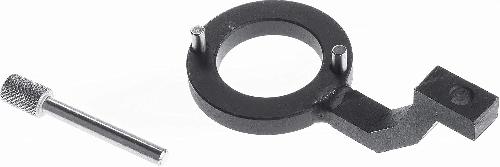

Fuel Pump Locking Tool-For Jlr JTC-6679

1. Features

• Specially designed to lock the high-pressure fuel pump in the correct timed position.

• Ensures safe and precise replacement of the high-pressure pump drive belt.

• Made from high-quality alloy steel with wear resistance.

• Provides stability and accuracy during engine repair.

• Suitable for multiple Jaguar and Land Rover models (2009-2014).

2. Specifications

• Model: JTC-6679

• Material: Hardened alloy steel

• Application: Jaguar XF, XJ; Land Rover Discovery 4; Range Rover & Range Rover Sport (2009-2014)

• Equivalent JM No.: 310-212

• Weight: ~0.5 kg

3. Applications

• Used in maintenance and repair of diesel engines equipped with high-pressure fuel pumps.

• Keeps the fuel pump in position during belt replacement or timing adjustments.

• Commonly used in professional Jaguar and Land Rover service centers.

4. How to Use

1. Locate the high-pressure fuel pump on the engine.

2. Remove the pump drive belt according to the manufacturer’s guide.

3. Install JTC-6679 to lock the pump in its timed position.

4. Replace or adjust the pump drive belt.

5. Remove the tool after completion and recheck the system.
