Engine Timing Tool Set-For Volvo, Renault JTC-6866

1. Main Features

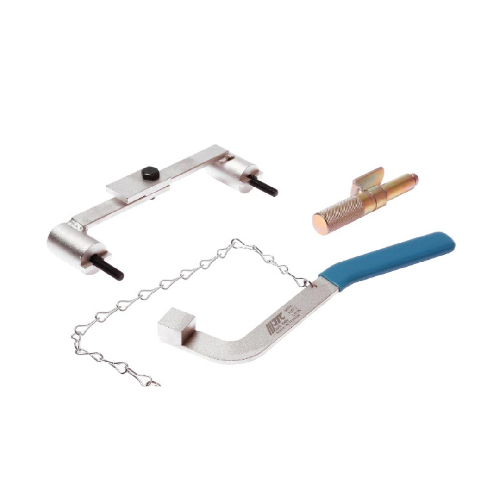

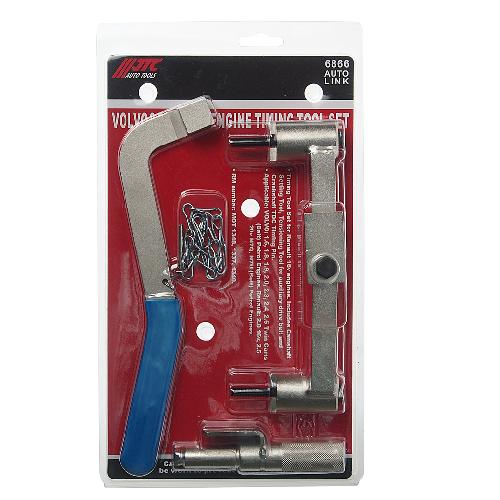

JTC-6866 is a special timing tool kit designed for camshaft positioning, timing belt tensioning, and TDC pin alignment for 16V and 20V petrol engines. The kit includes camshaft locking tools, auxiliary belt tensioners, and a crankshaft TDC locating pin. Precision-built and easy to use, suitable for Volvo and Renault engines.

2. Applications

Used in timing belt maintenance, camshaft timing, and TDC positioning for:

• Volvo petrol engines: 1.6L to 2.5L

• Renault petrol engines: 2.0L 16V and 2.5L 20V (engine codes N7Q, N7U)
  Perfect for auto repair shops, garages, and professional technicians.

3. How to Use

• Step 1: Lock the camshaft using the camshaft tool.

• Step 2: Insert the TDC pin to fix the crankshaft at top dead center.

• Step 3: Use the tensioning tool to adjust belt tension.

• Step 4: Remove or replace the timing belt.

• Step 5: Remove all tools after alignment verification.

4. Maintenance

• Clean tools after every use.

• Store in the original case to avoid loss or damage.

• Lightly oil metal parts to prevent rust.

• Avoid impacts that may damage calibration.
