Engine Timing Tool Set-For Gm, Opel JTC-4712

1. Key Features:

• Specialized Design: Specifically engineered for aligning the camshaft and crankshaft on GM and Opel engines.

• High-Quality Materials: Made of durable, high-strength steel that withstands workshop conditions and torque applications.

• High Precision: Ensures exact Top Dead Center (TDC) positioning, preventing misalignment during timing belt or chain installation.

• User-Friendly: Comes with quick-fit locking components that allow technicians to work efficiently and accurately.

• Wide Compatibility: Suitable for various GM and Opel engines, meeting diverse repair needs.

2. Practical Applications:

• Timing belt replacement and maintenance for GM and Opel engines (e.g., Z16XEP, A16XER, etc.).

• Camshaft and crankshaft alignment during disassembly, inspection, or valve timing adjustment.

• Ideal for professional auto repair shops, garages, and engine technicians.

• Especially useful in high-precision repair tasks, such as valve work, compression testing, or engine overhaul.

3. How to Use:

1. Remove the timing cover and belt following the vehicle manufacturer's instructions.

2. Rotate the crankshaft to TDC (Top Dead Center) using pulley markings.

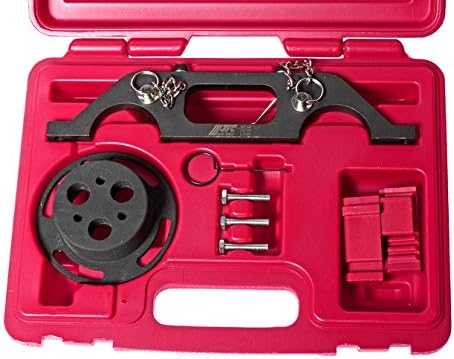

3. Install the locking pins and camshaft holders from the JTC-4712 set according to the technical manual.

4. Proceed with timing belt replacement or valve timing adjustments as needed.

5. After completion, remove the tools and reassemble all engine components, tightening to the specified torque values.

4. Tool Maintenance:

• Clean the tools thoroughly after each use to prevent oil and dirt buildup.

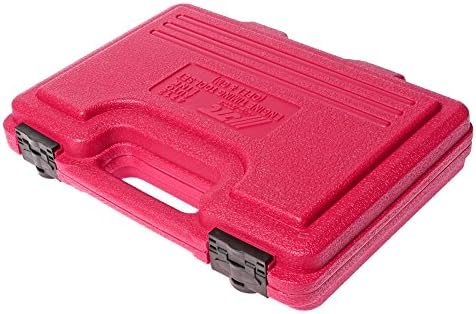

• Store in the provided plastic case in a dry environment to avoid rust or corrosion.

• Avoid applying excessive force or using tools improperly to maintain accuracy and durability.

• Inspect the tools periodically for wear or deformation and replace any damaged parts to ensure continued precision.
