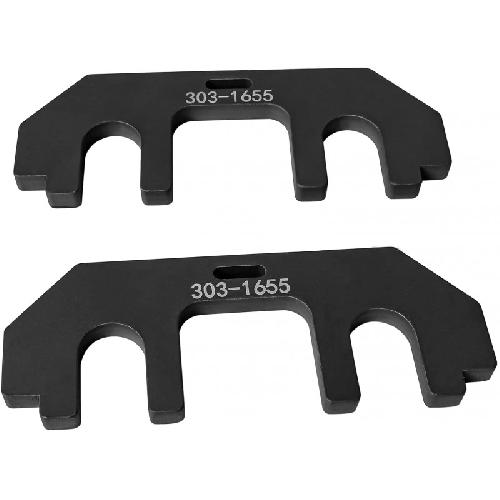

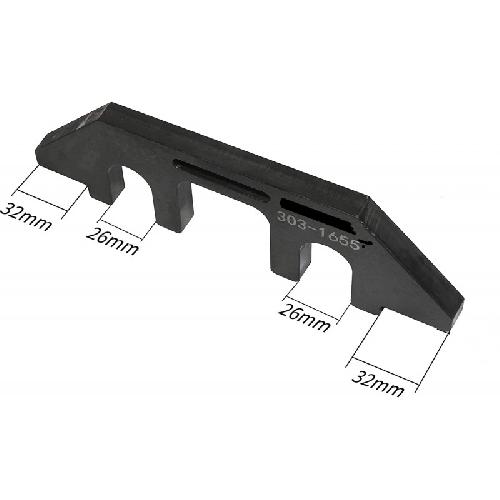

Engine Timing Tool Set-For Ford, Mazda JTC-6933

1. Key Features

• Specialized tool for holding camshafts at the Top Dead Center (TDC) position during engine service or timing belt replacement.

• High precision ensures proper ignition timing and stable engine operation post-installation.

• Compatible with late model FORD and LINCOLN vehicles from 2017 onwards.

• Made of hardened steel for durability and wear resistance.

2. Applications

• Used for maintenance, inspection, and replacement of timing belts or camshaft-related repairs.

• Applicable vehicles:

  • FORD: F-150 (2017~), GT (2017~), Expedition (2018~)

  • LINCOLN: Navigator (2018~)

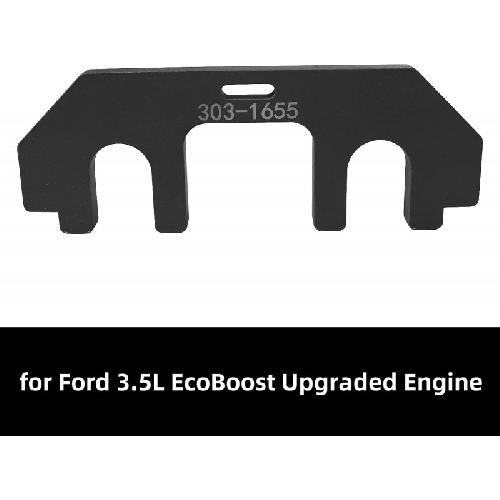

• OEM Reference Number: 303-1655.

3. Instructions for Use

• Disassemble required engine components to access camshafts.

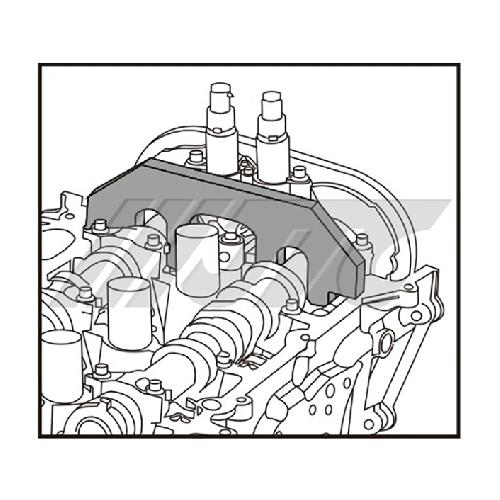

• Insert the camshaft holding tool in the designated position per vehicle service manual.

• Secure the camshaft at TDC before proceeding with timing belt replacement or timing adjustment.

• After service, remove the tool and manually rotate the engine to verify camshaft alignment.

4. Maintenance Guidelines

• Clean the tool after each use to remove debris and grease.

• Store in a dry, protected environment to prevent rust.

• Periodically inspect the tool for wear or misalignment and replace when necessary.
