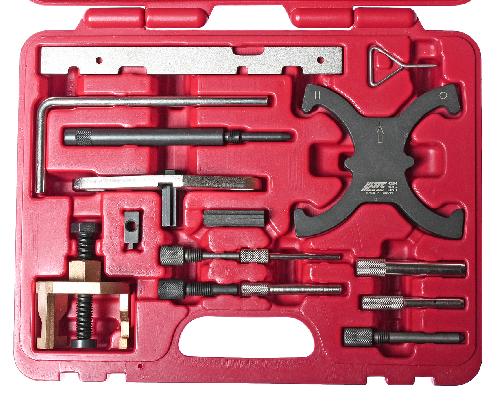

Engine Timing Tool Set-For Ford, Mazda JTC-4234

1. Key Features:

• Specialized tool kit for accurate alignment of camshaft and timing belt.

• Compatible with a wide range of Ford and Mazda petrol and diesel engines.

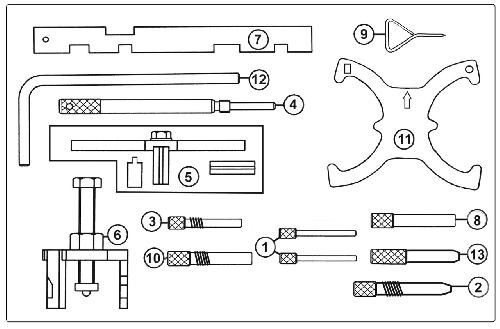

• Includes positioning pins and locking tools for camshaft/crankshaft.

• Made from high-quality hardened steel, ensuring durability and strength.

2. Practical Applications:

• Used during timing belt replacement or engine synchronization.

• Suitable for Ford Duratec and Duratorq engines.

• Also compatible with PSA 1.4 and 1.6 HDI engines on Mazda vehicles.

3. How to Use:

• Remove engine covers and locate the Top Dead Center (TDC).

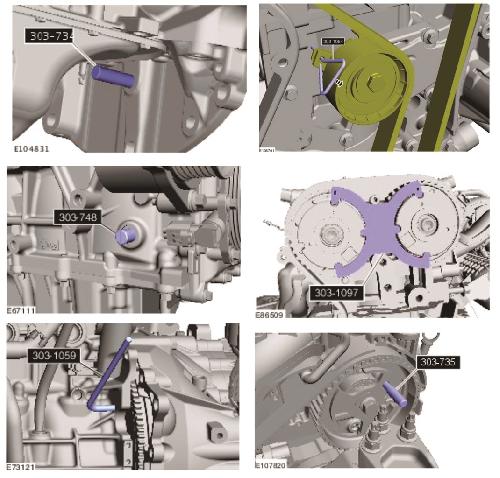

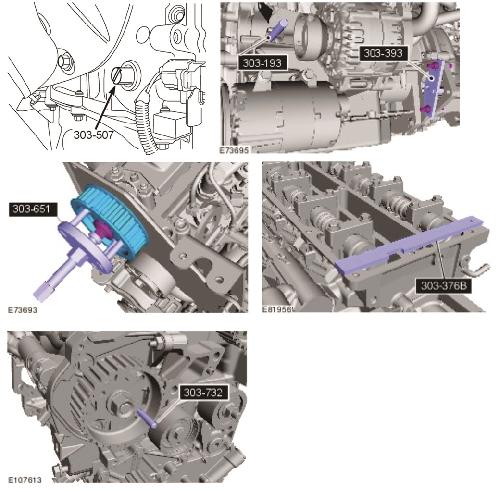

• Use the locking pins to secure the camshaft and crankshaft in place.

• Replace the timing belt, then remove the tools and verify ignition timing.

4. Tool Maintenance:

• Clean thoroughly after use to prevent rust.

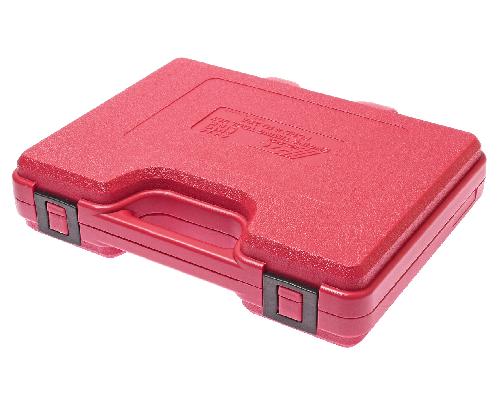

• Store in its case in a dry environment.

• Inspect locking pins for wear before each use to maintain accuracy.
