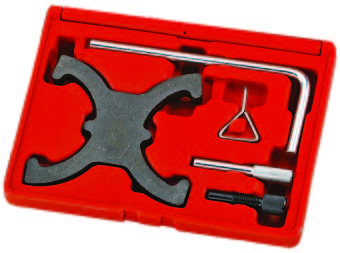

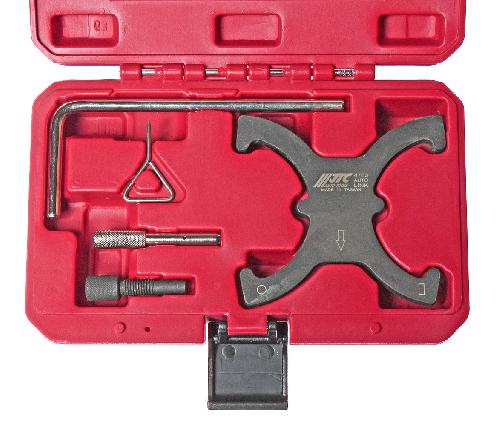

Engine Timing Tool Set-For Ford 1.6 Ti-Vct JTC-4763

1. Key Features:

• Special tool designed for installation and removal of Variable Camshaft Timing (VCT) units.

• Enables accurate checking and adjustment of camshaft timing.

• Compatible with modern Ford engines from 2003 onwards.

• Made from high-strength steel for durability and long-term use.

• Simple construction allows easy handling for professionals and technicians alike.

2. Practical Applications:

• Ideal for maintenance, overhauls, or replacement of camshaft control systems.

• Applicable to Ford vehicles:

  • Focus / C-Max 1.6 Ti-VCT (2003 and later).

  • 2.0 TDCi diesel engines.

• Suitable engine codes: HXDA, G6DA, G6DB, G6DC.

• Commonly used in professional repair shops and authorized service centers.

3. How to Use:

• Remove engine covers to access the camshaft and timing unit.

• Rotate engine to Top Dead Center (TDC).

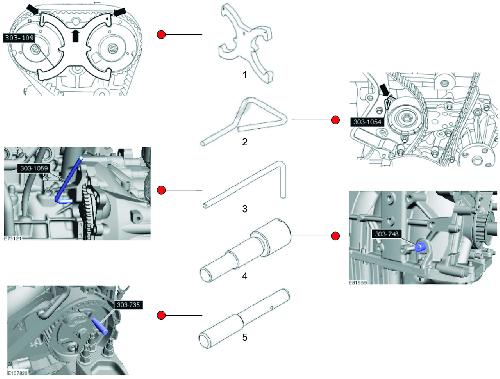

• Use the tool set to lock and align the camshaft correctly.

• Perform necessary inspection or replacement of the VCT unit.

• Reassemble components and double-check timing alignment.

4. Maintenance:

• Clean the tool with a dry cloth after each use.

• Avoid moisture exposure to prevent rust.

• Apply light oil to threads or moving parts regularly.

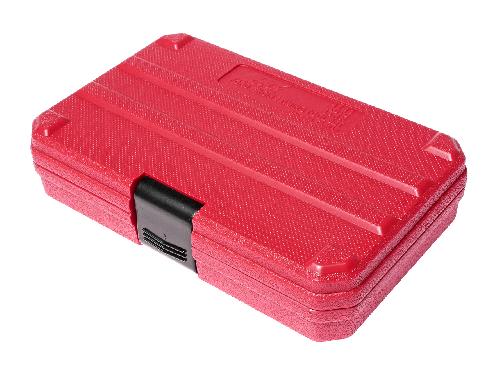

• Store in the original case in a cool, dry place.
