Diesel Engine Timing Tool-For Ford JTC-4721

1. Key Features

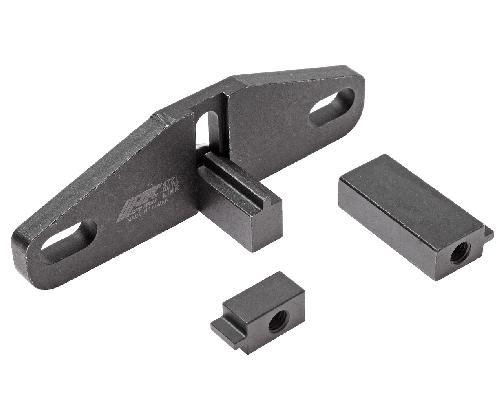

• Includes flywheel locking tool with 2 adaptors for precise camshaft alignment.

• Designed specifically for Ford diesel and petrol engines.

• Compatible with various timing chain engines.

• Ensures accurate engine timing and reduces risk of misalignment.

• Durable construction suitable for workshop and professional use.

2. Practical Applications

• Used to lock the camshaft and crankshaft in the correct TDC position.

• Ideal for timing service, engine rebuilding, or camshaft replacement.

• Suitable for models including:

  • Focus 2.0 TDCi, Focus C Max 2.0 TDCi (G6DA, G6DB, G6DC)

  • Focus 1.6 T-VCT, Focus C Max 1.6Ti-VCT (HXDA)

  • Fiesta 1.8 D Turbo (C9DC, RTN, RTP, RTQ)

  • Focus 1.8 TDdi / TDCi (BHDA, C9DC, FFDA, F9DA, BKKDA)

  • Focus C Max 1.8 TDCi (KKDA)

  • Tourneo Connect 1.8 TDDi / TDCi (BHPA, HCPA, HCPB)

  • Transit Connect 1.8 TDDi / TDCi (BHPA, HCPA, HCPB)

3. How to Use

• Remove necessary engine covers and components for access.

• Align the engine at Top Dead Center (TDC).

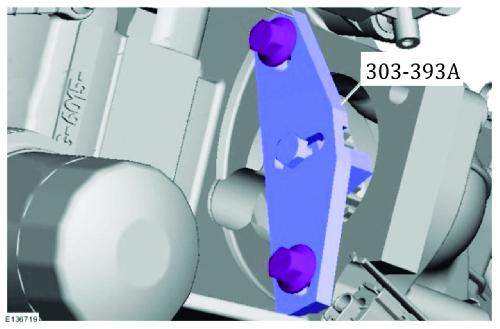

• Use the provided locking tool and adaptors to secure the camshaft and crankshaft.

• Proceed with timing adjustment, chain replacement, or related service.

• After completion, remove the tools and reassemble components.

4. Maintenance Instructions

• Clean tools after each use with a dry cloth.

• Store in a dry, clean environment to prevent corrosion.

• Check for wear or damage before use.

• Lubricate moving or threaded parts occasionally to ensure smooth operation
