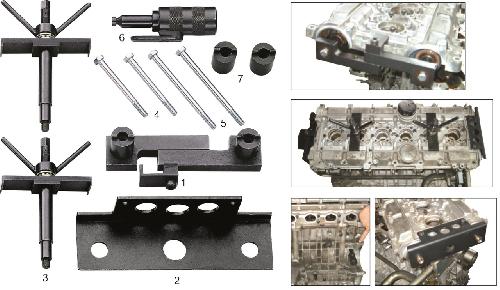

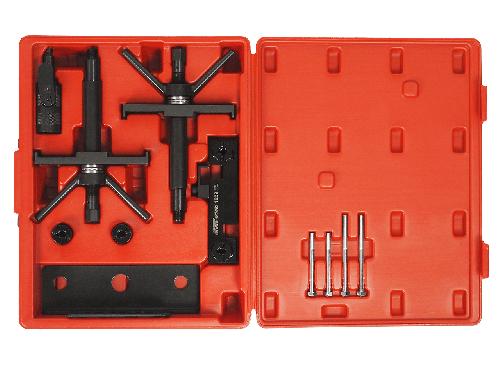

Camshaft Crankshaft Alignment Tool-For Volvo JTC-1829

1. Key Features

• Specialized tool for aligning camshaft and crankshaft accurately.

• Allows installation of camshaft with cam cover sensor.

• Used for inline 4, 5, and 6-cylinder engines.

• Applicable for twin cam motors up to 2006.

• Also suitable for aligning camshaft with cam cover.

2. Practical Applications

• Applicable for Volvo models: 850, 960, S40, S70, S90.

• Supports engines such as: B6254GS, B6294T, B5234T4, etc.

• Used during repair, replacement, and alignment of camshaft and crankshaft systems.

3. How to Use

• Remove covers to access camshaft and crankshaft.

• Install the tool at proper alignment points.

• Proceed with engine checks and reassembly.

4. Maintenance

• Clean the tool after each use to remove oil and residue.

• Store in a dry environment to prevent rust.

• Periodically inspect contact surfaces and locking parts for accuracy.
